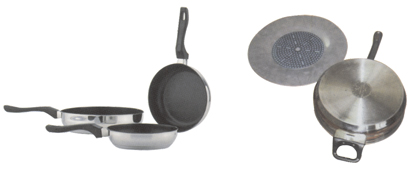

The machines are optimized by finite element analysis, in welding steel plate structure, with good rigidity, high quality, stable, mainly suitable for hardware embossing, complex molding and other shaping etc, particularly suitable for embossing the bottom of non stick pot, pressing the stainless steel plate of induction cooker, aluminum pot and non stick pot.
-
Fast speed, pressure adjustable for fast and slow movement, high efficiency.
-
High geometric accuracy, stable
-
Independent filtered cooling assemblies
-
Photoelectric protective devices
-
Equipment inspection accuracy standards: JB1293-73
|
Description |
单位 |
YAK-700A |
YAK-1000A |
YAK-1500A |
YAK-2000A |
YAK-2500G
|
|
Nominal capacity |
Mpa |
7000 |
10000 |
15000 |
20000 |
25000 |
|
Max.Pressure |
mm |
25 |
25 |
40 |
40 |
40 |
|
Max Stroke |
mm |
200 |
150 |
250 |
250 |
200 |
|
Open height Max |
mm |
500 |
360 |
560 |
600 |
480 |
|
Open height Min |
mm |
300 |
210 |
310 |
350 |
280 |
|
Table Area R-L |
mm |
820 |
860 |
920 |
1020 |
1300 |
|
Table Area F-B |
mm |
820 |
860 |
920 |
1020 |
1300 |
|
Speed |
mm/s |
85 |
100 |
80 / 120 |
80 / 120 |
80 |
|
Motor Output |
KW |
15 |
22 |
37+3 |
37+3 |
37+3 |
|
Overall size R-L |
mm |
1700 |
1620 |
2050 |
2350 |
2700 |
|
Overall size F-B |
mm |
1600 |
1720 |
2000 |
2400 |
2500 |
|
Overall size H |
mm |
2400 |
2400 |
3650 |
3650 |
3980 |
Subject to change without prior notice.Special order accepted.
